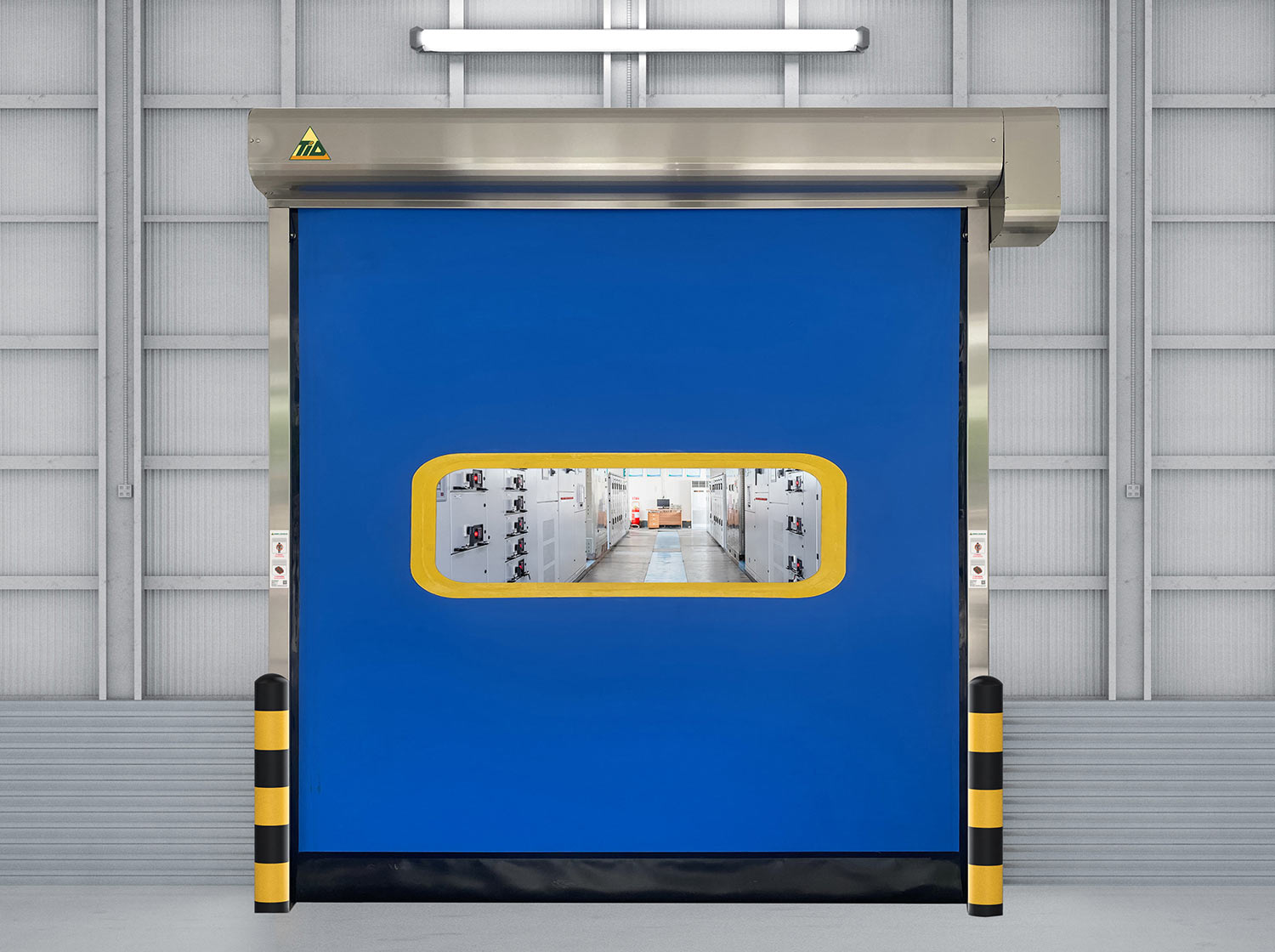

气密快速卷帘门 TID-QM

Airtight fast rolling shutter door TID-QM
2023120914025086

【品牌】缇艾迪

【品名】气密快速卷帘门

【分类】快速卷帘门

【产品特色】高气密性、高静音性、高速度、模块化安装

【型号优势】轨道一体化密封设计、防撞设计、先进的变频器驱动技术

【适用场景】食品工厂、无尘车间、净化车间、化工厂、等对密封性、节约能耗要求高的区域

【可定制类型】防爆快速型、智能感应等互联系统

【联系方式】400-616-8865

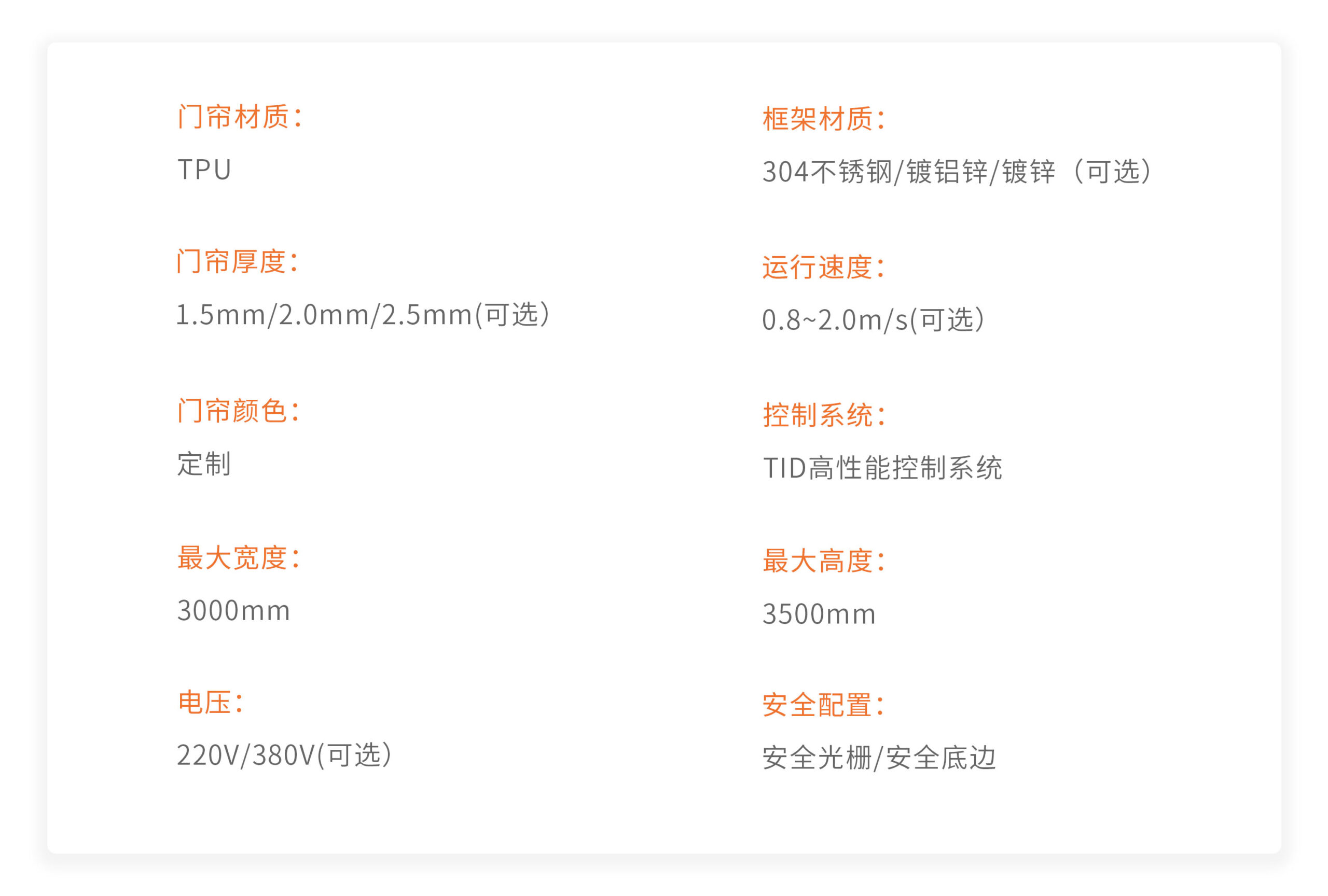

产品参数

Product parameters

2024031205131262

产品优势

Product advantages

2024030807485111

铝合金一体成型密封轨道,外围包覆304不锈钢,最大化解决使用场景密封性不足等问题



Aluminum alloy integrated molding sealed track, surrounded by 304 stainless steel, maximizes the solution to problems such as insufficient sealing in usage scenarios

202403080822557

气密设计包箱,304不锈钢无痕折弯工艺



Airtight design packaging box, 304 stainless steel seamless bending process

2024030807542411
2024030807545113

TID可视化操作控制系统,调试便捷、简单



TID visual operation control system is easy and easy to debug

TID足功率伺服电机系统,高灵敏性,使用寿命≥120万次



TID high-power servo motor system, high sensitivity, service life ≥ 1.2 million times

2024030808223335
2024030807510214

高灵敏性安全底边,安全性可达国际标准



High sensitivity and safety bottom line, safety meets international standards

采用欧洲工艺,2.5mm厚TPU织物+防静电涂层处理。可达到防爆标准



Adopting European technology, 2.5mm thick TPU fabric+anti-static coating treatment. Can meet explosion-proof standards.

客户关心

Customer care

问:什么是气密快速卷帘门?

答:气密快速卷帘门是普通快速卷帘门的升级版,气密快速卷帘门起源于欧洲,主要适用于对气密性要求较高以及能耗要求较高的场景,气密性要求较高场景例如食品车间以及净化车间,使用气密快速卷帘门可以有效的阻隔灰尘和细菌;能耗要求较高的场景例如夏天的厂房作业环境,使用气密快速卷帘门能够快速的让空调对作业环境进行降温,且高效的气密性能够长时间的保持室内温度平衡,从而大大节约了能耗,节约企业工况成本



Q: What is an airtight fast rolling shutter door?

Answer: The airtight fast rolling shutter door is an upgraded version of the ordinary fast rolling shutter door. The airtight fast rolling shutter door originated in Europe and is mainly suitable for scenarios with high requirements for airtightness and energy consumption. For scenarios with high requirements for airtightness, such as food workshops and purification workshops, the use of airtight fast rolling shutter doors can effectively block dust and bacteria; In scenarios with high energy consumption requirements, such as summer factory work environments, using airtight fast rolling shutter doors can quickly cool down the working environment by air conditioning, and the efficient airtightness can maintain indoor temperature balance for a long time, greatly saving energy consumption and enterprise work costs



问:气密快速卷帘门应该达到什么样的标准?

答:气密快速卷帘门应该满足如下性能:例如速度快,开启速度应在2M/秒左右才可以实现快速隔绝空气的性能;一体式门帘,门帘应是由PVC和TPU组成的复合型一体式门帘,没有任何金属硬件,从而实现门帘和轨道的完全密封以及解决包含金属件的快速卷帘门引起的冷凝水滴落问题;复合式一体式轨道,其轨道应是用于配合一体式门帘的独立开模设计的双层密封轨道,普通折弯工艺轨道完全无法满足气密性要求;包箱应进行密封设计,整门密封性能应满足欧标EN13241-1的标准



Q: What standards should airtight fast rolling shutter doors meet?

Answer: The airtight fast rolling shutter door should meet the following performance requirements: for example, the speed is fast, and the opening speed should be around 2M/second to achieve rapid air isolation performance; Integrated door curtain, which should be a composite integrated door curtain composed of PVC and TPU, without any metal hardware, to achieve complete sealing between the door curtain and the track and solve the problem of condensation water droplets caused by fast rolling shutter doors containing metal parts; The composite integrated track should be a double-layer sealed track designed with independent mold opening to match the integrated door curtain. The ordinary bending process track cannot meet the airtightness requirements at all; The packaging box should be designed for sealing, and the sealing performance of the entire door should meet the European standard EN13241-1



问:缇艾迪气密快速卷帘门最快的交期是多久?

答:交货时间需要针对不同的产品型号及工程量清单而定,缇艾迪快速卷帘门通常交期为20天内,如果您需要对项目进行加急,请联系缇艾迪服务热线400-616-8865,我们会第一时间安排产品工程师为您服务



Q: What is the fastest delivery time for TID airtight quick rolling shutter doors?

Answer: The delivery time depends on different product models and bill of quantities. The delivery time for TID quick rolling shutter doors is usually within 20 days. If you need to expedite the project, please contact TID service hotline 400-616-8865, and we will arrange product engineers to serve you as soon as possible
